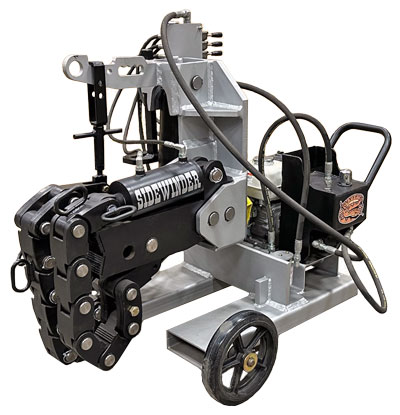

OCI SIDEWINDER GAS MODELThe OCI Sidewinder Hydraulic Breakout Wrench is designed for breaking loose or tightening drill tooling or any cylindrical object. The Sidewinder has two operational positions providing power for vertical or horizontal breakout or tightening. Chains and arms are positioned horizontally for attaching to vertical drill strings. In this position the Balance Arm can be used to lift the entire Sidewinder with a winch to achieve correct height for jaw location.
By rotating the main frame of the Sidewinder 90 degrees, the machine is now available for use with your work piece in the horizontal position or parallel to the ground. The chains on both arms are tightened by hydraulic cylinders. Links should be added or removed to allow the hydraulic cylinder to be almost retracted when the chain is tight.
The lower arm or the arm on the left side when holding the transport handle is referred to as the FIXED ARM. The other arm is referenced as the MOVEABLE WRENCH ARM. It is possible to slide the fixed arm away from the moveable wrench arm (by removing spacer) but care must be taken to have the jaws/chains as close as possible together under high torque breakouts. Keeping the arm close and the cylinder’s rods retracted lessen the likelihood that the unit will bend, or the cylinder arms be damaged. A word of caution: This unit develops high pressure and high torque.
Features:

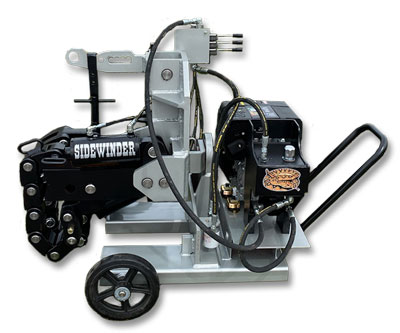

OCI SIDEWINDER DIESEL MODELCompact and Portable, Self-maintained Unit- No Extra Backup or Lifting Equipment Required
- Handles a Wide Diameter Range with Same Setup
- Instantly Changes from Break Out to Make Up Mode
- Safe to Operate and Easy to Handle
- Operates in Vertical or Horizontal Position in Limited Space
- Chain Design Safely Enables Tong to Handle Tools
- Portable and Designed with Two Hydraulic Chain Tongs in One Unit, with One Being the Built-in Backup
- Powered by Gasoline Engine and Hydraulic Pump
- The “Hydraulic Chains” are Designed to Grab Any Shape with Different O.D. Sizes at the Same Time
- More Torque
- Faster Speeds
- Two Stage Pump
- Alloy Steel Chain Links
- Allows Wide Forks

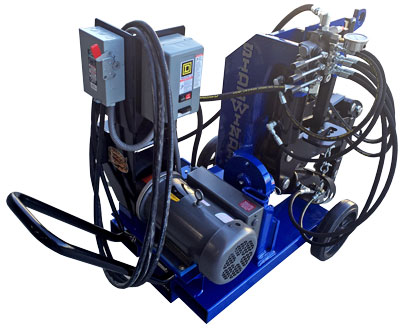

OCI SIDEWINDER ELECTRIC MODELHeavier Pivot Pin and Supports- Easier Winter Starting
- Honda Engine
- Frame Less Likely to Bend
- Oil Tank Thicker Steel
- Fill – Breather Cap Shrouded
- Accessible Return Line Filter
- Made in the USA
- Extensively Field Tested
